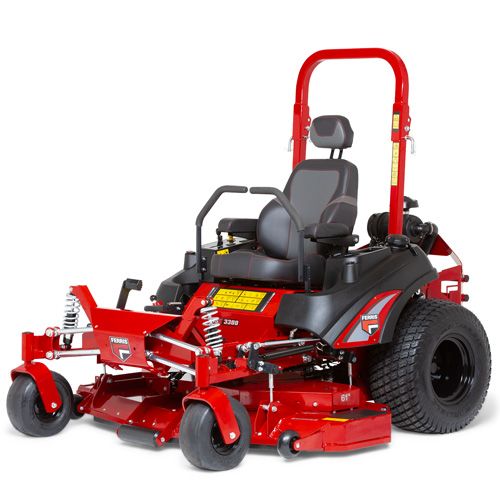

FERRIS ISX3300Z commercial mower 61" TRIPLE

ENGINE GROUP

• Vanguard® EFI engine features reduced fuel consumption, increased power and load acceptance and optimized starting.
• Vanguard® Electronic Throttle Control allows the engine to harness all the power that is generated for more consistent blade tip speed.
• Vanguard® Oil Guard™ system protects the oil from thermal breakdown extending the oil maintenance interval to 500 hours.
• Faster, easier and mess free engine oil changes means less time spent changing oil and more time cutting.
• Donaldson® FPG RadialSeal™ cyclonic, two-stage industrial air-cleaner ensures clean air intake in dusty conditions.
• Twin fuel tanks with total capacity of 42 litres and fuel level gauge in each tank.

MOWER DECK

• iCD™ deck technology allows grass a longer period of time to rise in the chamber before cutting blades make contact, resulting in a better cut quality.
• TRIPLE mowing technology: All-in-One solution including side discharge, rear discharge and mulching options.
• Cutting height: 3,8 - 12,7 cm (1.5” - 5”) adjusts in 0,6 cm (.25”) increments.
• Top greaseable HerculesTM II cast-iron mower spindles.
• 2 -Belt deck drive system improves belt life and is more dependable.

DRIVE TRAIN / CHASSIS

• Patented suspension system that dramatically increases operaator comfort and productivity, which includes:
• ForefrontTM Independent front wheel suspension system utilizing dual independent control arms and large adjustable coil-over-shocks.
• Swingarm rear wheel suspension system utilizing a pivoting transaxle cradle and large adjustable coil-over-shocks.
• Independent Hydro-Gear® ZT-5400 Powertrain® transaxles featuring an independent oil filter, charge pump, shock valves and a maximum output torque of 949 Nm.
• Fabricated frame featuring industry leading 6.35 mm walled 38.1 x 63.5 mm tubular steel frame rails.
• Heavy duty integrated rear bumper protects the engine compartment.

OPERATOR CONTROL & COMFORT SYSTEMS

• Spacious operator compartment featuring ergonomically positioned control panel, cupholder, and storage compartment.
• Certified folding Roll Over Protection Structure (ROPS).
• Foot activated hydraulic deck lift system for easy lifting and lowering.
• Premium high-back seat with padded arm rests, head rest and retractable seat belt.
• Removable floor plate for easy maintenance access to deck drive system.
• Electric PTO engagement.
• Integrated tie-down points at front and rear of the machine.

WARRANTY

• Balance of machine: 4-Years Limited Warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months)
• Coil-over-shocks and all suspension related components: 5-Years (60 months) unlimited hours
• Hydro drive belt, tires, brake pads, hoses, battery, blades 90 Days
• Mower deck drive belt: 3-years (36 months) or 300 hours, whichever occurs first. (Parts and labor in year one; parts only in years two and three)
• Engine: 3-Year Manufacturer’s Limited Warranty
